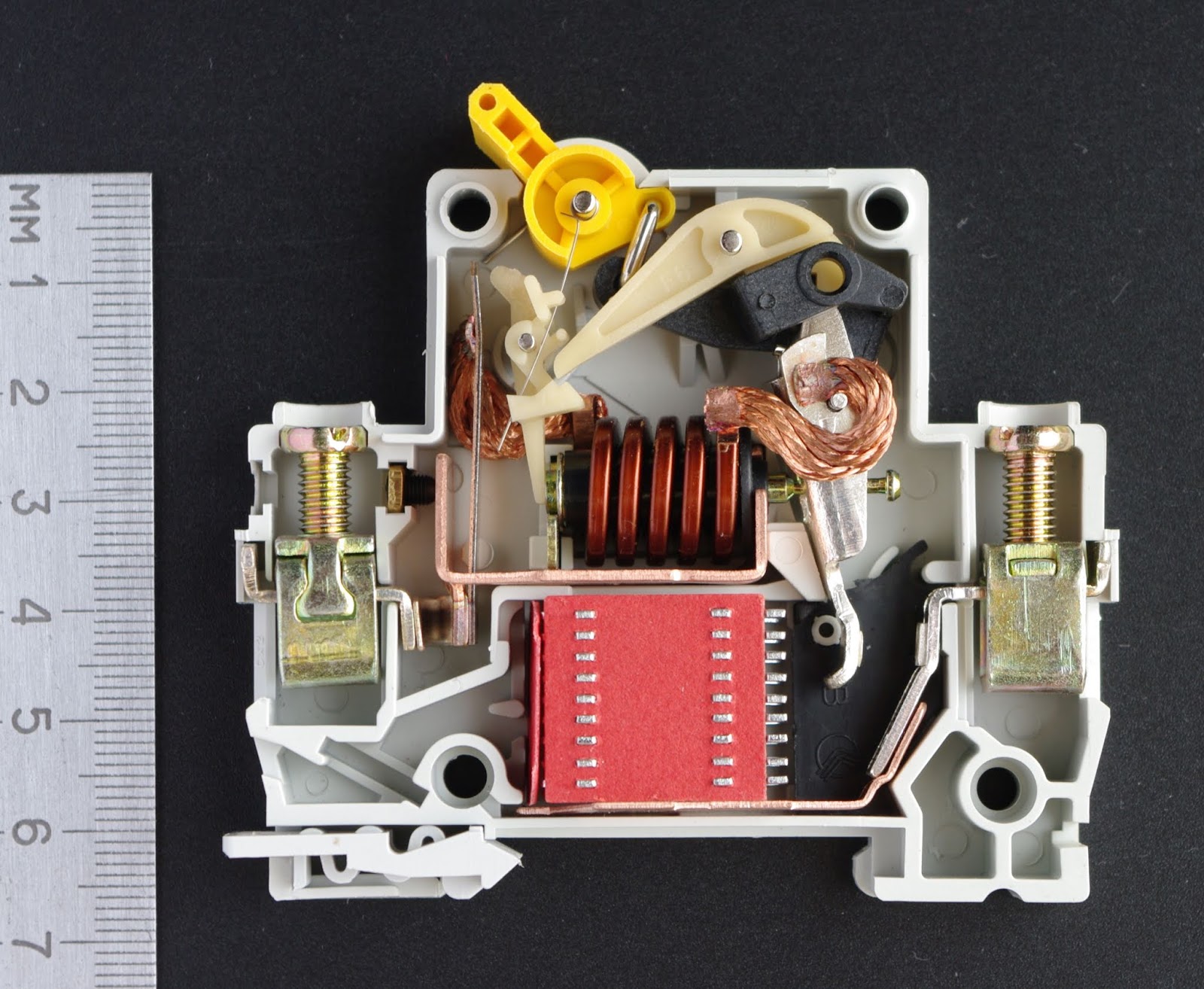

| Circuit breaker-engrsaifulsaif |
What is a Circuit Breaker?
Electrical switch is an exchanging gadget which can
be worked consequently or physically for ensuring and controlling of electrical
power framework. In the cutting edge control framework the structure of the
electrical switch has changed relying on the tremendous flows and to keep from
circular segment while working.
Electrical switch
Power which is going to the houses or workplaces or
schools or businesses or to some other spots from the power dissemination
networks frames an enormous circuit. Those lines which are associated with the
power plant shaping toward one side is known as the hot wire and different
lines interfacing with ground framing opposite end. At whatever point the electrical
charge streams between these two lines it creates potential between them. For
the total circuit the association of burdens (apparatuses) offers protection
from the progression of charge and the entire electrical framework inside the
house or businesses will work easily.
They work easily as long as the machines have
adequately safe and don't cause any over current or voltage. The purposes
behind warming up the wires are a lot of charge coursing through the circuit or
shortcircuiting or unexpected association of the hot end wire to the ground
wire would warmth up the wires, causing fire. The electrical switch will avert
such circumstances which essentially removed the rest of the circuit.
Various Types of Circuit Breakers
The
various kinds of high voltage circuit breakers which incorporates the
accompanying
• Air Circuit Breaker
• SF6 Circuit Breaker
• Vacuum Circuit Breaker
• Oil Circuit Breaker
• Air Circuit Breaker
Air Circuit Breaker
This electrical switch will work noticeable all
around; the extinguishing medium is an Arc at environmental weight. In huge
numbers of the nations air electrical switch is supplanted by oil electrical
switch. About oil electrical switch we will talk about later in the article. Subsequently
the significance of ACB is as yet ideal decision to utilize an Air electrical
switch up to 15KV. This is on the grounds that; oil electrical switch may burst
into flames when utilized at 15V
The two kinds of air circuit breakers are:
1.Plain air electrical switch
2.Air impact Circuit Breaker
Plain Air Circuit Breaker
Plain air electrical switch is additionally called
as Cross-Blast Circuit Breaker. In this, the electrical switch is fitted with a
load which essentially encompasses the contacts. This chamber is known as
circular segment chute.
This circular segment is made to drive in it. In
accomplishing the cooling of the air electrical switch, a circular segment
chute will help. From the stubborn material, a curve chute is made. The inner
dividers of bend chute are formed so that curve isn't constrained into
nearness. It will crash into the winding channel anticipated on a circular
segment chute divider.
The curve chute will have numerous little
compartments and has numerous divisions which are metallic isolated plates.
Here every one of little compartments acts as a smaller than normal circular
segment chute and metallic partition plate acts like bend splitters. All circular
segment voltages will be higher than the framework voltage when the curve will
part into a progression of bends. It is ideal for low voltage application.
Air Blast Circuit Breaker
Air impact circuit breakers are utilized for
framework voltage of 245 KV, 420 KV and furthermore even more.Air impact
circuit breakers are of two sorts:
Pivotal impact breaker
Pivotal impact with sliding moving contact.
Pivotal Blast Breaker
In the pivotal blaster breaker the moving contact of
the hub impact breaker will be in contact. The spout hole is a fixed to the
contact of a breaker at a typical shut condition. A deficiency happens when
high weight is brought into the chamber. Voltage is adequate to support
high-weight air when moved through spout opening.
Hub Blast Circuit breaker
Favorable circumstances of Air-Blast Circuit Beaker
It is utilized where regular task is required on
account of lesser circular segment vitality.
It is sans hazard from flame.
Little in size.
It requires less upkeep.
Curve extinguishing is a lot quicker
Speed of electrical switch is a lot higher.
The time length of the circular segment is same for
all estimations of current.
Detriments of Air-Blast Circuit Breaker
It requires extra upkeep.
The air has generally lower circular segment
smothering properties
It contains high limit air blower.
From the air pipe intersection there might be an
opportunity of pneumatic force spillage
There is the opportunity of a high rate ascent of
re-striking current and voltage cleaving.
Application and Uses of Air Circuit Breaker
It is utilized for assurance of plants, electrical
machines, transformers, capacitors and generators
Air electrical switch is additionally utilized in
the Electricity sharing framework and GND about 15Kv
Used in Low just as High Currents and voltage
applications.
SF6 Circuit Breaker
In the SF6 electrical switch the flow conveying
contacts work in sulfur hexafluoride gas is known as a SF6 electrical switch.
It is a superb protecting property and high electro-pessimism. It tends to be
gotten that, high liking of engrossing free electron. The negative particle is
framed when a free electron crashes into the SF6 gas atom; it is consumed by
that gas atom. The two unique methods for connection of electron with SF6 gas
atoms are
SF6 + e = SF6
SF6 + e = SF5-+ F
The negative particles which are framed will be a
lot heavier than a free electron. Hence, when contrasted and other normal gases
generally speaking portability of the charged molecule in the SF6 gas is
considerably less. The portability of charged particles is significantly in
charge of directing current through a gas. Consequently, for heavier and less
versatile charged particles in SF6 gas, it obtains extremely high dielectric
quality. This gas great warmth move property in light of low vaporous
consistency. SF6 is multiple times more powerful in circular segment
extinguishing media than air electrical switch. It is utilized for both medium
and high voltage electrical power framework from 33KV to 800KV.
Sorts of SF6 Circuit Breaker
Single interrupter SF6 electrical switch connected
up to 220
Two interrupter SF6 electrical switch connected up
to 400
Four interrupter SF6 electrical switch connected up
to 715V
Vacuum Circuit Breaker
A Vacuum electrical switch is a circuit which vacuum
is utilized to terminated the circular segment. It has dielectric recuperation
character, amazing intrusion and can interfere with the high recurrence flow
which results from circular segment insecurity, superimposed hanging in the
balance recurrence flow.
Vacuum Circuit Breaker
In the guideline of activity of VCB will have two
contacts called terminals will stay shut under ordinary working conditions.
Assume when an issue happens in any piece of the framework, at that point the
excursion loop of the electrical switch gets invigorated lastly contact gets
isolated.
The minute contacts of the breaker are opened in
vacuum, for example 10-7 to 10-5 Torr a circular segment is created between the
contacts by the ionization of metal vapors of contacts. Here the circular
segment rapidly gets stifled, this happens in light of the fact that the
electrons, metallic vapors and particles created during curve, consolidate
rapidly on the outside of the CB contacts, bringing about fast recuperation of
dielectric quality.
Points of interest
VCBs are solid, smaller and long life
They can intrude on any shortcoming current.
There will be no flame risks.
No clamor is delivered
It has higher dielectric quality.
It requires less power for control task.
Oil Circuit Breaker
In this kind of electrical switch oil is utilized,
yet mineral oil is ideal. It acts preferred protecting property over air. The
moving contact and fixed contact are immerged inside the protecting oil. At the
point when the partition of current happens, at that point transporter contacts
in the oil, the circular segment in electrical switch is introduced right now
of division of contacts, and due to this bend in the oil is vaporized and
disintegrated in hydrogen gas lastly makes a hydrogen bubble around the curve.
This very compacted gas bubble around and bend
anticipates re-striking of the circular segment after current achieves zero
intersection of the cycle. The OCB is the most established kind of circuit
breakers.
Various kinds of Oil Circuit Breaker
Mass oil electrical switch
Least oil electrical switch
Mass Oil Circuit Breaker (BOCB)
In the BOCB, oil is utilized to bend the
extinguishing media and furthermore for protecting media in the middle of earth
portions of electrical switch and flow conveying contacts. A similar
transformer protecting oil is utilized.
The working rule of the BOCB says when the current
conveying contacts in the oil are isolated, at that point a circular segment is
produced between the isolated contacts. The circular segment which is built up
will deliver fast developing gas bubble around the bend. The moving contacts
will move far from the fixed contact of bend and this outcome the obstruction
of the curve gets expanded. Here the expanded obstruction will cause the
bringing down the temperature. Henceforth the diminished developments of gasses
encompass the curve.
BOCB Circuit Breaker
At the point when the present goes through zero
intersection the curve extinguishing in the BOCB takes places. In the absolutely
sealed shut vessel, the gas air pocket is encased inside the oil. The oil will
encompass with high weight on the air pocket, this outcomes in exceptionally
compacted gas around the circular segment. At the point when the weight is
expanded the de-ionization of the gas likewise builds, which results in curve
extinguishing. The hydrogen gas will help in cooling the circular segment
extinguishing in the oil electrical switch.
Points of interest
Great cooling property on account of deterioration
Oil has high dielectric quality
It acts like a protector among earth and live parts.
The oil utilized here will assimilate circular
segment vitality while breaking down
Burdens
It won't allow fast of intrusion
It requires some investment.
Least Oil Circuit Breaker
It is an electrical switch which uses oil as the
intruding on media. The base oil electrical switch will put the intruding on
unit in a protecting chamber at the live potential. Be that as it may,
protecting material is accessible in intruding on chamber. It requires less
measure of oil so it is called as least oil electrical switch.
Points of interest
It requires less upkeep.
It is reasonable for both programmed activity and
manual.
It requires littler space
The expense for breaking limit in MVA is likewise
less.
Detriments
Oil decays on account of carbonization.
There is a plausibility of blast and fire
As it has a littler amount of oil, so carbonization
increments.
It is hard to expel gases from the space between the
contacts.
In this article the various kinds of circuit
breakers, for example Air Circuit Breaker, SF6 Circuit Breaker, Vacuum Circuit
Breaker and Oil Circuit Breaker have been examined in a short point by point
just to comprehend the fundamental idea about these circuit breakers. What's
more, their subdivision is likewise talked about alongside favorable
circumstances and drawbacks. We have talked about each idea all around
obviously. In the event that you have not seen any of the points, you feel any
data is missing or to execute any electrical tasks for designing understudies,
if you don't mind don't hesitate to remark in the underneath segment.
No comments
